Regular wave bay window curtain tracks

Regular wave bay window curtain tracks

Have you always wanted regular wave bay window  curtain tracks. Never been sure how to make it happen?

Worried that it will cost a small fortune!
Then your search is over as our bay wave tracks are really affordable.

We can help you make this a reality without worrying about getting it right. While also making the ordering and fitting super simple.

We guarantee these bay tracks for 10 Years.

We also give a No quibble Guarantee that if it doesn't fit your bay perfectly. No matter whose fault it is. We will remake at NO cost to you.

Take a look at our regular wave bay window curtain tracks that don't cost a fortune? These white metal  wave tracks can be ceiling fixed within your bay. Then either ceiling fixed or wall fixed on the returns out of your bay.

This video above is showing the Slimline wave bay track. However, all wave track styles work the same way.
This page is for the slightly deeper Regular wave bay track.

If you're not sure how a wave bay track works?

Then it's simply a curtain track system that makes your curtain headings form into a wave shape. So making your curtains hang smoothly undulating back and forth from top to bottom. The magic ingredient is the gliders in the track.

These gliders are all connected to each other with a slim cord that only allows the spaces between the gliders to reach a maximum of either 6cm or 8cm apart. So as the first glider get pulled along the track. The cord behind it then pulls the next glider along until it then pulls the next glider along. Creating the even spacing of the gliders. Which in turn creates those even undulating folds in your curtains.

Glider options - 8cm or 6cm spaced wave gliders

Other than the obvious 2cm difference is spacing between the gliders. Which one would you choose and why?

If you choose the 6cm spaced wave gliders you will end up with slightly more gliders across the width of the track compared to the 8cm spaced gliders. This means not just more gliders but more inportantly more curtain waves being created across your track.

Compared again to the 8cm wave gliders not only will you have a few more waves in the curtains. Those waves will be slimmer. so the 8cm gliders give your curtains a wider more rounded wave effect. The 6cm gliders will give your curtains a slimmer more angled wave effect.

The sheer wave effect curtains (image bottom of page) are fitted to the same width curtain track. You can see the difference on the look between the two. Or can you?

how to use a tape measure correctly
bay window curtain track returns
measuring for a bay track to hang long curtain in a bay window
measuring for hanging sill length curtains video
how to order a bay track
hanging curtains within a bay only
measuring for a ceiling fix bay track
measuring for a wall fixed bay track

Practical reason between the 2 glider choices?

The only practical thing to consider with regular wave bay window curtain tracks is the stack back. When the curtains are open and stacked back to the sides of your window. How much space will they take up?

If you have limited space on each side of your window.  Then the 8cm spaced wave gliders will be your best option. As you will have a few less wave pleats to stack back away from the window area.

If you have lots of space on the sides of your window and you are happy with the curtains covering this area. Then which size wave glider is purely down which look you prefer. The wider wave or the narrower wave.

Other reasons for choosing the regular wave bay window curtain tracks

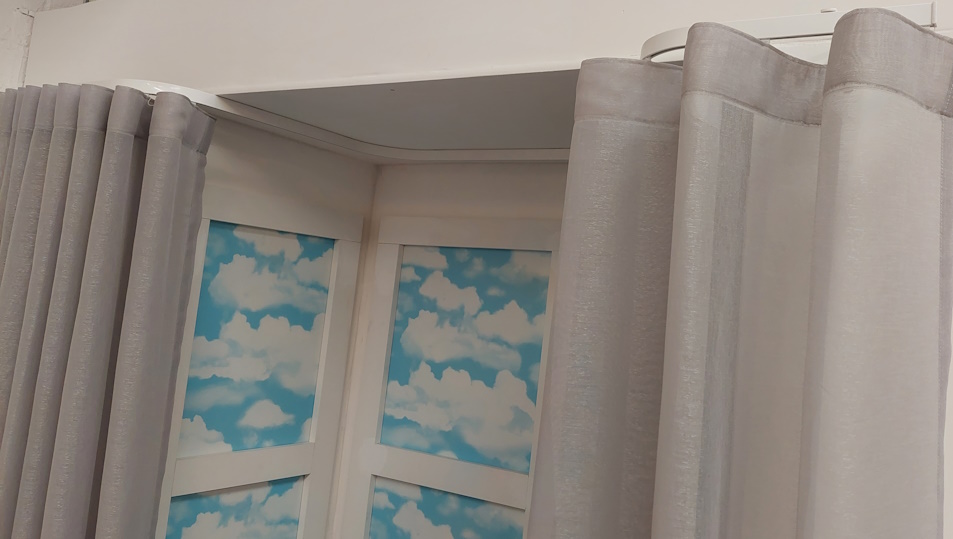

regular wave bay window curtain tracks

You would choose a wave curtain style if you want to continue a modern contemporary look in the room. The simplicity of the look means regular even folds even across wide windows. Wave curtains work best when hung floor to ceiling. I personally would choose another curtain style if going for shorter curtains.

From a practical point of view there is sometimes just little or no wall over the top of the window frame. So the only option is to hang from ceiling fixed hardware. As with the bay window image above. This wave track is ceiling fitted within the bay and on the returns out of the bay on each side.

This bay was complicated by having a coving all the way around the room and within the bay. This meant the track returns had to sit just in front of the coving when fitted to the ceiling.

This then pushed the wave curtain pleats further out from the return walls. However, every problem has a silver lining. With the curtains being wave effect. This space allowed plenty of room for the backward facing pleats to sit.

Measuring for your regular wave curtain bay window track

When it comes to measuring for regular wave bay window curtain tracks to fit your bay perfectly. It is no different than measuring for a our regular bay window curtain tracks. That's because you aren't measuring for the track itself.

You only need to measure the bay following our measuring guides. We then work out the best way for the track to fit within the bay, and returns if ordered.

regular wall fix curtain track front

Wave track and curtain position

These regular wave bay window curtain tracks can only be ceiling fixed within the bay. Then if you plan on having the track return out of the bay on both sides into the room. Then the track can be either wall fixed if the ceiling in the room is higher than the bay.  Or ceiling fixed if the ceiling in the room is at the same height as the ceiling within the bay.

If fixing to the ceiling in your bay is not an option. Then assuming your bay has no  window sills, or very small sills. Then the slimline wave bay track would probably be the better wave bay window curtain track solution. As the slimline track has longer wall fix bracket options.

The big difference between tracks with standard gliders and those with wave gliders. Is the track fitting position. The wave tracks need to fit somewhere between 8 to 10cm away from the window sill front edge. The same again for any walls.

The other big difference between regular curtains and wave curtains. Is that regular curtains tend to hang in front of the curtain track. So when the curtains close the track is not seen.

With wave curtains the curtains sit under the track. Half the fabric folds forward of the track position. The other half of the folds backwards of the track position towards the window sill/wall. Hence the need to extra space behind the track.

Above the regular wave bay window curtain tracks are ceiling fixed within the bay (the only option). Then wall fixed on the returns out of the bay.

The great benefit of having your new wave bay window curtain track made to fit perfectly. Is not having to cut the track down to size. Also not bending it in the wrong place. Then trying to re-bend it and making things even worse.

All you have to do is unpack the ready shaped track. Then fit the return brackets if not also ceiling fixed. That's if the ceiling in the bay is at the same height as the ceiling in the room.

Then with the help of an extra pair of hand present the bay track up to the ceiling. Prior to this I usually put a few small pencil marks on the ceiling. These mark the back of the track position. This way you know the track is in the correct position ready for fixing in place. Then finally secure the ceiling brackets. Anyone with very basic DIY skills can complete this project within an hour. Often a lot quicker.

You can get a instant price including delivery by using the simple calculator below.  We can make these to fit almost any bay window shape. These curtain tracks are super smooth running and your curtains will glide around your bay.

Corded wave track spec

  • Colour: White
  • Material: Aluminium
  • Depth (front to back) 1cm
  • Height (including ceiling brackets) 2.3cm
  • Our 10 Year NO quibble Guarantee
